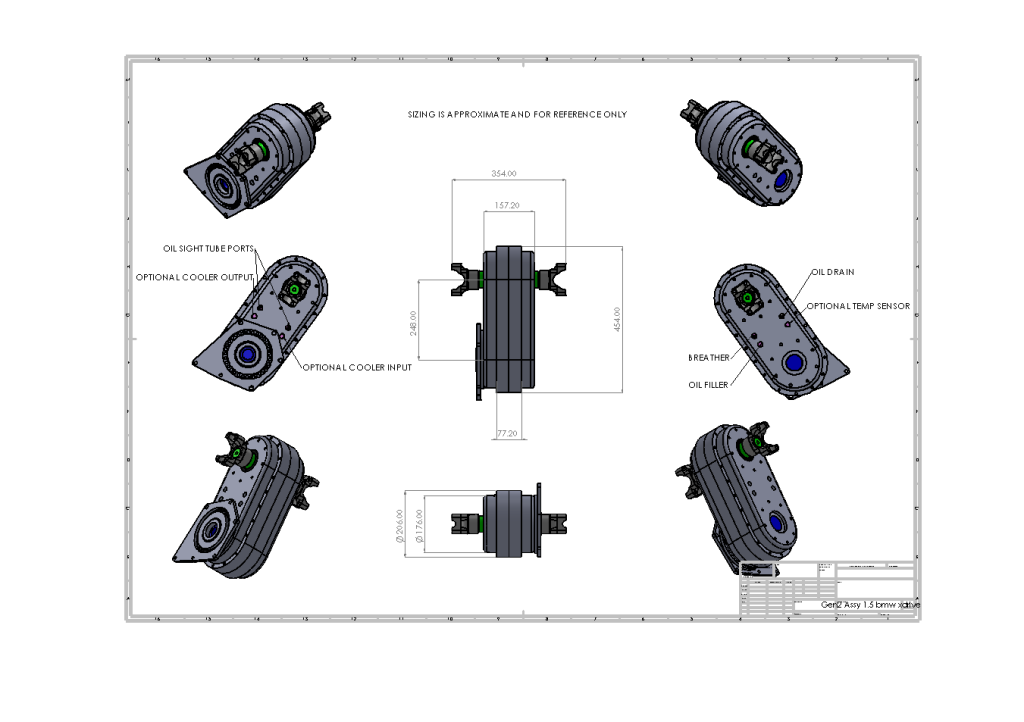

EVOCASE SS

Here you’ll find some of the basic tech info on the Evocase SS ideal for integration into your setup. For RREvocase info scroll down.

Approximate bare weight – 50KG – Varies depending on ratio, outputs, input and mounting.

Drop distance between input & output – 248mm

Permanent drive to front and rear outputs (Perm 4WD)

Chromoly gears, intermediate shaft, Intermediate Caps, Output flanges and yokes.

12.9 high tensile bright zinc plated fasteners

Recommended oil 1.5 litres of Swepco 203 80W250

Optimum running temp of 75-80 degrees C (158-176F)

A bit of general maintenance requirement is as follows: Drain the oil after each event and inspect for contaminants. If its fine you can refill. If it’s not please replace with Swepco of the same grade. I would recommend replacing once a season as a bare minimum.Monitor the Yellow markings on all fasteners to ensure none loosen during use. Monitor the breather and ensure it remains clear and unblocked. Monitor the transfer box for any leaks.

RREVOCASE

Approximate bare weight – 25KG – Varies depending on ratio, outputs, input.

Drop distance between input & output – Varies depending on ratio

Permanent drive to front and rear outputs (Perm 4WD)

Chromoly gears, Output flanges and yokes.

12.9 high tensile bright zinc plated fasteners

Recommended oil 0.5-0.6 litres of 80W250 depending on ratio

Optimum running temp of 75-80 degrees C (158-176F)

Dimensions vary based on ratio:

CAD MODELS FOR BUILDERS

Basic CAD models can are available on request as well as 3d printed mock up cases.
